Cell Strategy

All grid layout composables take a cell strategy parameter called SimpleGridCells. SimpleGridCells defines the number of cells and the size of each cell.

There are several types of cell strategy, Fixed, Adaptive and FixedSize. They are similar to LazyGrid's GridCells.Fixed, GridCells.Adaptive and GridCells.FixedSize.

Fixed

SimpleGridCells.Fixed is a cell strategy for exact count of rows or columns. And each cell will have 1/n of the grid size.

The API of Fixed looks like this:

class Fixed(
    private val count: Int,
    private val fill: Boolean = true
) : SimpleGridCells

There is a parameter called count. This is the maximum number of cells the grid should have on each line. The count must be a positive number. If 0 or negative number is provided, it occurs an exception.

Note

For information about fill parameter, read Fill Optoin section.

For example, a grid has 400dp width or height, and Fixed(4) is applied.

HorizontalGrid(
    rows = SimpleGridCells.Fixed(4),
    modifier = Modifier.height(400.dp)
) { /* content */ }

VerticalGrid(
    columns = SimpleGridCells.Fixed(4),
    modifier = Modifier.width(400.dp)
) { /* content */ }

The grid will have 4 cells on each line. If the grid is horizontal, it will have 4 rows and if vertical, it will have 4 columns. And each cells should have 1/n of the grid size. In this example, each cells will have 100dp width or height.

Adaptive

SimpleGridCells.Adaptive is a cell strategy for as many cells as possible. And each cell will have at least minimum size.

The API of Adaptive looks like this:

class Adaptive(
    private val minSize: Dp,
    private val fill: Boolean = true
) : SimpleGridCells

There is a parameter called minSize. This is the minimum size of each cell should have. The minSize must be a positive size. If the size is 0 or below, it occurs an exception. The grid layout with Adaptive calculates the maximum number of cells possible while keeping the minSize restriction.

Note

For information about fill parameter, read Fill Option section.

For example, a grid has 400dp width or height and Adaptive(120.dp) is applied.

HorizontalGrid(
    rows = SimpleGridCells.Adaptive(120.dp),
    modifier = Modifier.height(400.dp)
) { /* content */ }

VerticalGrid(
    columns = SimpleGridCells.Adaptive(120.dp),
    modifier = Modifier.width(400.dp)
) { /* content */ }

The grid will calculate how many cells should have. In this case, the grid will have 3 cells on each line. Because, there is no way to have 4 or more cells while keeping minSize restriction. And each cells will have 1/3 of 400dp (about 133.333dp) width or height.

If the grid size is expanded to 600dp, the number of cells on each line will be changed to 5 and each cell's size will be 120dp.

FixedSize

SimpleGridCells.FixedSize is a cell strategy for as many cells as possible with exact size.

The API of FixedSize looks like this:

class FixedSize(
    private val size: Dp,
    private val fill: Boolean = true
) : SimpleGridCells

There is a parameter called size. This is the size of each cell should have. The size must be a positive size. If the size is 0 or below, it occurs an exception. If the size is bigger than container's size, the cell will have the same size to the container.

Note

For information about fill parameter, read Fill Option section.

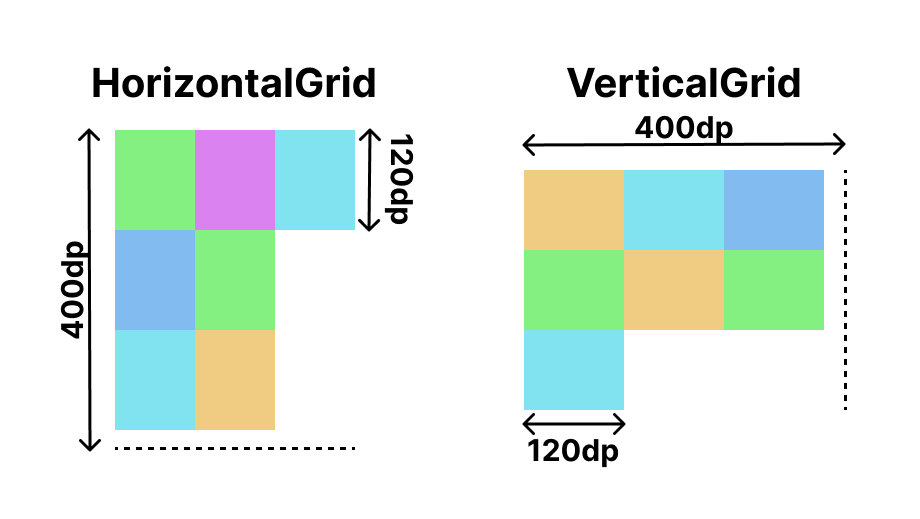

For example, a grid has 400dp width or height and FixedSize(120.dp) is applied.

HorizontalGrid(
    rows = SimpleGridCells.FixedSize(120.dp),
    modifier = Modifier.height(400.dp)
) { /* content */ }

VerticalGrid(
    columns = SimpleGridCells.FixedSize(120.dp),
    modifier = Modifier.width(400.dp)
) { /* content */ }

The grid will have 3 cells on each line and the remaining space will not be used. If the grid size is expanded to 600dp, the number of cells on each line will be changed to 5.

In other case, FixedSize(300.dp) for VerticalGrid(Modifier.width(200.dp)) means that there will be only one column and the cell will have 200dp width.

Fill Option

All cell strategy classes have a optional parameter named fill. The fill parameter determines that grid's item composable should fill grid cell's size.

When fill is true, grid layout forces item composable to have width or height to fit cell's maximum width or height. (width when vertical grid, height when horizontal grid) But when false, item composable can have width or height from 0 to cell's maximum width or height. This allows an item to be aligned within a cell, instead of being forced to fill it.
