Layout Composables

Box Grid

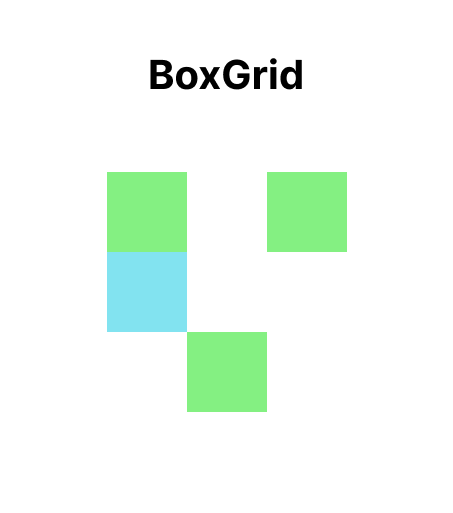

GridLayout library provides BoxGrid composable. BoxGrid is a grid layout composable that allows you to place items in grid format. Like Box composable, items in BoxGrid can be placed in any position.

In the BoxGrid, each item can have Modifier.row and Modifier.column to specify the cell position. If row or column is not provided, it considered as 0.

BoxGrid(
    modifier = Modifier.fillMaxSize(),
    rows = SimpleGridCells.Fixed(3),
    columns = SimpleGridCells.Fixed(3),
) {
    // It will be placed at 0, 0.
    Item()

    // It will be placed at 0, 1.
    Item(modifier = Modifier.row(1))

    // It will be placed at 1, 2.
    Item(modifier = Modifier.position(row = 2, column = 1))

    // It will be placed at 2, 0.
    Itme(modifier = Modifier.column(2))
}

Note

You can see rows and columns parameter for BoxGrid. This parameters are required parameter for grid layout. For details, see cell strategy section.

Sequential Grid

GridLayout library also provides sequential grid composables, HorizontalGrid and VerticalGrid. These composables place items sequentially in a grid format.

GridLayout library provides a simple API to make grid UI. And also this library's grids have similar API to lazy grids. If you have used LazyGrid, you can use this library more easily.

Basically, there are 2 composables to make grid, HorizontalGrid and VerticalGrid. HorizontalGrid is a grid layout composable that increases its width as items increases and VerticalGrid increases its height as items increases.

The following sample code shows how to use these grid layout composables.

HorizontalGrid(
    rows = SimpleGridCells.Fixed(3),
    modifier = Modifier.fillMaxHeight()
) {
    // It will be placed at 0, 0.
    Item()

    // It will be placed at 0, 1.
    Item()

    // It will be placed at 0, 2.
    Item()

    // It will be placed at 1, 0.
    Item()
}

VerticalGrid(
    columns = SimpleGridCells.Fixed(3),
    modifier = Modifier.fillMaxWidth()
) {
    // It will be placed at 0, 0.
    Item()

    // It will be placed at 1, 0.
    Item()

    // It will be placed at 2, 0.
    Item()

    // It will be placed at 0, 1.
    Item()
}

Note

You can see rows and columns parameter for HorizontalGrid and VerticalGrid. This parameter is required parameter for grid layout. For details, see cell strategy section.

Fill Max Main Axis Size

HorizontalGrid and VerticalGrid support fillMaxMainAxisSize modifier. This modifier makes the item have the same size to the maximum of the main axis sizes in the line. It is useful when you want to make all items in the same line have the same size.

Experimental

This modifier is currently experimental. You should use it with @ExperimentalGridApi annotation to opt-in.

HorizontalGrid(rows = SimpleGridCells.Fixed(3)) {
    // This item determines the max size of the column.
    Item(modifier = Modifier.size(100.dp))

    // This item will be expanded to 100.dp height.
    Item(modifier = Modifier.fillMaxMainAxisSize())
}

RTL (Right to Left) Supports

GridLayout supports RTL layout direction. Grids check current layout direction and places items by direction.

If you want to apply a specified layout direction manually, wrap grid layout with CompositionLocalProvider and provide LocalLayoutDirection like following code:

CompositionLocalProvider(LocalLayoutDirection provides LayoutDirection.Rtl) {
    HorizontalGrid(
        rows = SimpleGridCells.Fixed(3),
        modifier = Modifier.fillMaxHeight()
    ) { /* content */ }
}
