Spanning Cells

Sequential Grid

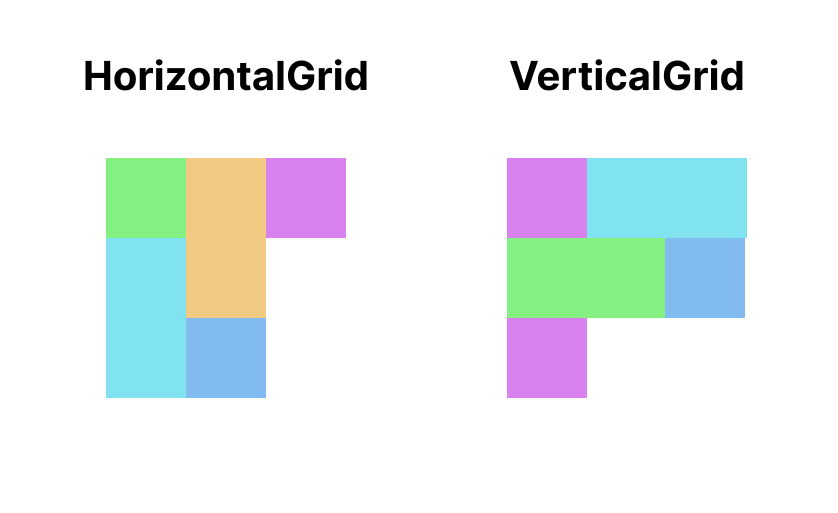

HorizontalGrid and VerticalGrid are also available to set span size. The content composable lambda of grid layout extends GridScope. To apply span size, you can set span modifier in the GridScope. Like BoxGridScope's rowSpan and columnSpan, the span modifier takes a lambda to calculate span.

Warning

If returned span size is bigger than maximum cell count of the axis, the cell will be undisplayed.

HorizontalGrid(rows = SimpleGridCells.Fixed(3)) {
    Item()
    Item(Modifier.span { 2 })
    Item(Modifier.span { 2 })
    Item()
    Item()
}

VerticalGrid(columns = SimpleGridCells.Fixed(3)) {
    Item()
    Item(Modifier.span { 2 })
    Item(Modifier.span { 2 })
    Item()
    Item()
}

You can access to GridItemSpanScope to get information of current line span.

The maxLineSpan is the same to cross axis cell count. For example, if a vertical grid has 4 columns, the maxLineSpan is 4.

And the maxCurrentLineSpan is the current usable cell count. For example, if a vertical grid has 4 columns and already one cell is filled, the maxCurrentLineSpan is 3.

VerticalGrid(columns = SimpleGridCells.Adaptive(30.dp)) {
    for (i in 0 until itemCount) {
        Item(
            modifier = Modifier.span {
                if (maxLineSpan == maxCurrentLineSpan) {
                    maxLineSpan - i
                } else {
                    maxCurrentLineSpan
                }
            }
        )
    }
}

Box Grid

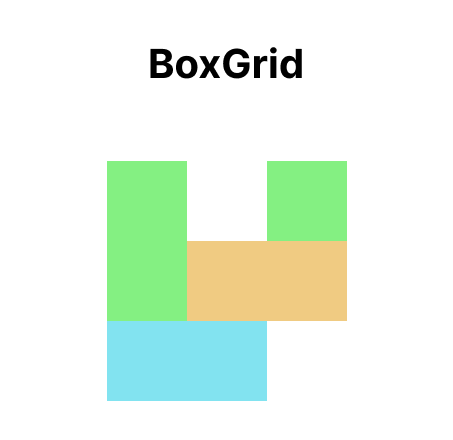

The content composable lambda of grid layout extends BoxGridScope. In the BoxGridScope, you can use rowSpan and columnSpan modifier to set span size of cell.

The span modifiers take a lambda to calculate spans. The lambda returns a BoxGridItemSpan which represents row and column span size. Or you can just pass null instead of lambda to use default span size, which is 1.

BoxGrid(
    rows = SimpleGridCells.Fixed(3),
    columns = SimpleGridCells.Fixed(3)
) {
    Item(modifier = Modifier.span { BoxGridItemSpan(row = 2) })
    Item(modifier = Modifier.column(2))
    Item(modifier = Modifier.position(row = 1, column = 1).span { BoxGridItemSpan(column = 2) })
    Item(modifier = Modifier.row(2)span { BoxGridItemSpan(column = 2) })
}

You can access to BoxGridItemSpanScope to get information of current row or column span.

The maxRowSpan and the maxColumnSpan is the same to cell count. And the maxCurrentRowSpan and the maxCurrentColumnSpan is the current usable cell count.

BoxGrid(
    rows = SimpleGridCells.Adaptive(30.dp),
    columns = SimpleGridCells.Adaptive(30.dp)
) {
    for (i in 0 until itemCount) {
        Item(
            modifier = Modifier.span {
                val rowSpan = if (maxRowSpan == maxCurrentRowSpan) {
                    maxRowSpan - i
                } else {
                    maxCurrentRowSpan
                }
                val columnSpan = if (maxColumnSpan == maxCurrentColumnSpan) {
                    maxColumnSpan - i
                } else {
                    maxCurrentColumnSpan
                }
                BoxGridItemSpan(
                    row = rowSpan,
                    column = columnSpan
                )
            }
        )
    }
}
